45' Articulated Boom Lift - Internal Combustion

220-0450

The 45' IC Articulating Boom Lift offers substantial reach with a platform height of 45 feet, facilitating access to high and challenging areas efficiently. Powered by a robust internal combustion engine, it delivers powerful performance and extended operation times, ideal for outdoor and heavy-duty job sites. The articulating arm provides enhanced maneuverability, allowing for precise positioning around obstacles and in tight spaces. Its rugged design ensures durability and reliability in demanding conditions, making it a dependable choice for various applications. Overall, this lift combines significant reach, powerful performance, and superior maneuverability to boost productivity and versatility on a wide range of projects.

Specifications

Specification Detail
Max Platform Height 45 feet
Max Working Height 51 feet
Lift Capacity 500 pounds
Horizontal Outreach 25 feet
Machine Width 7 feet 8 inches
Weight 14,150 pounds
Power Source Diesel/Gasoline engine
Stowed Height 8 feet 2 inches

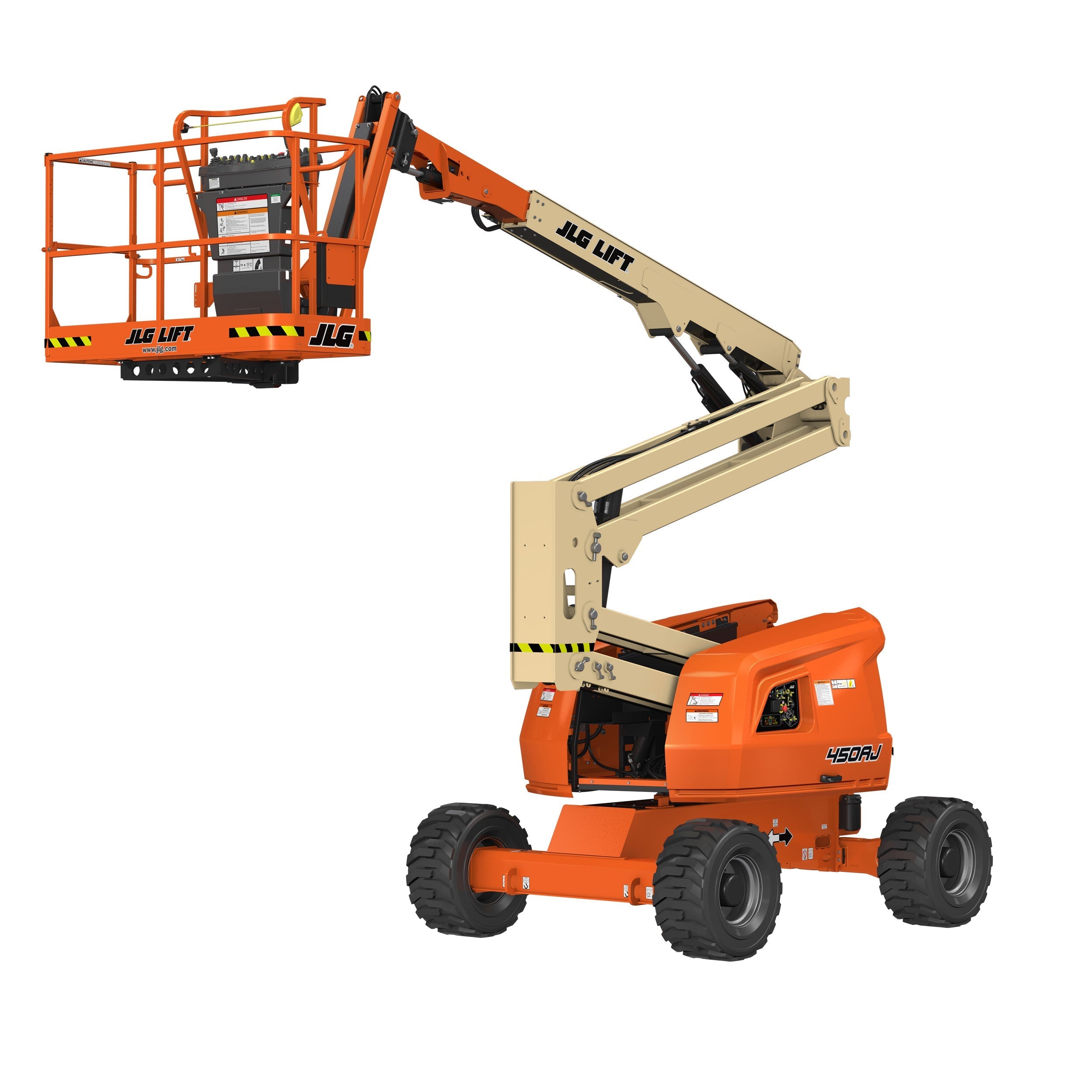

*Equipment shown is an example and may not be the exact equipment provided
