BRAKE UPGRADE KIT

Specifications

Item Description

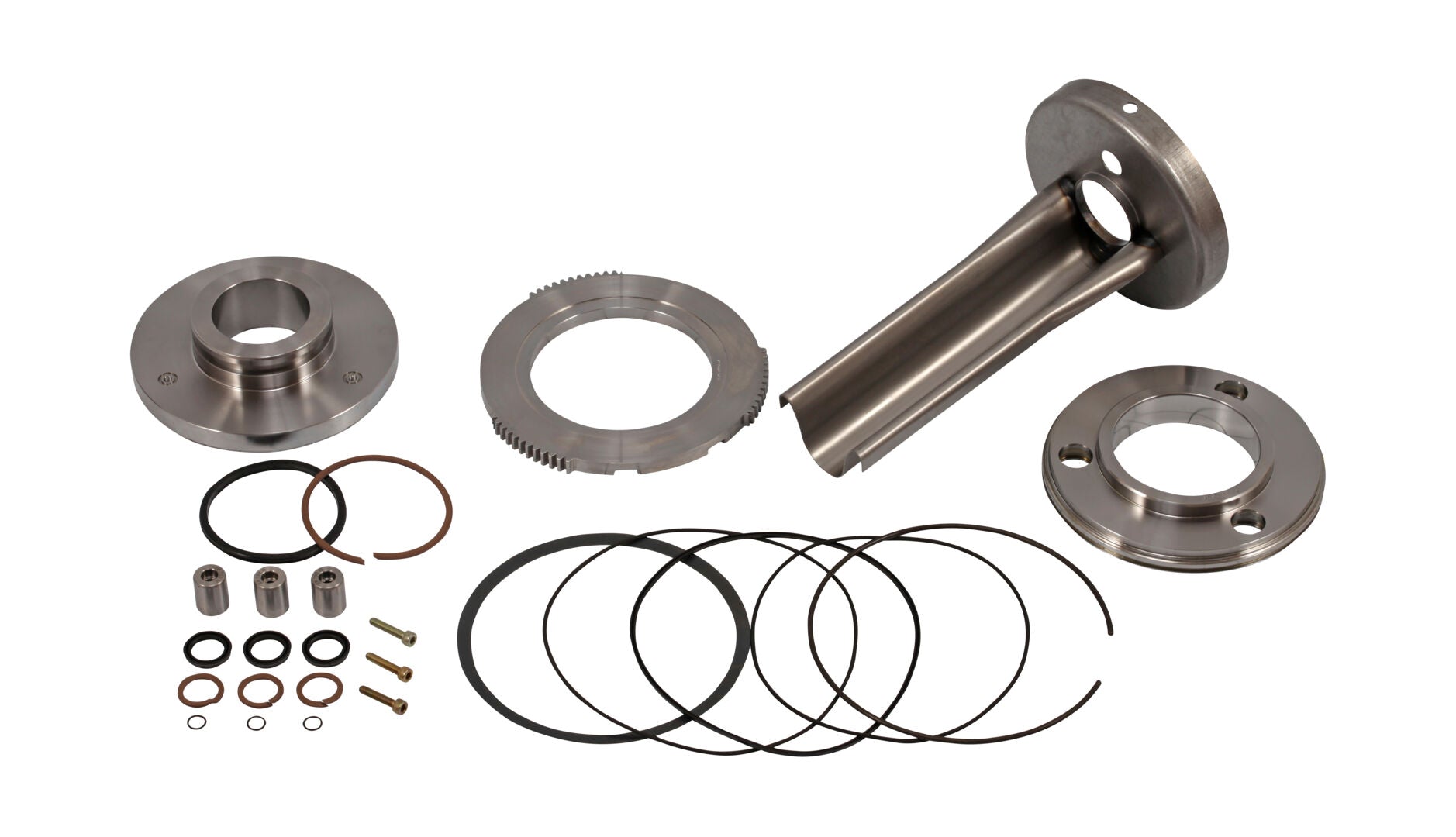

The ZF Axle Brake Seal Kit is used on various JLG SkyTrak Legacy and Lull telehandlers with ZF axles. The kit includes: one end shim, a snap ring, a sealing washer, a piston, a four-lip ring, a u-ring (piston inner), a supporting ring, an o-ring (sealing washer), a cup spring, an oil dam, a u-ring (piston outer), three (3) pressure pins, three (3) cap screws, three (3) O-ring (sealing washer pressure pins), three (3) u-rings (sealing washer pressure pins) and three (3) backup rings. The kit also includes one of part number 1319425; an o-ring. For use on SKyTrak Legacy models: 6036, 6042, 10042, 10054, Lull models: 644E-42, 944E-42, 1044C-54 Series II (For use on axles prior to S/N 679304 or prior to S/N 675668). Please verify the proper serial number range and axle install for your machine.

Skyworks is an authorized reseller of JLG parts.
