A rockwheel trencher is a specialized equipment designed to cut through challenging ground conditions, such as solid rock and concrete. It features robust cutting wheels with sharp teeth that efficiently grind through hard materials, providing precise trenching without the need for blasting or drilling. This trencher's adjustable cutting depths and widths cater to various project specifications, offering flexibility in trench dimensions and configurations. Operators benefit from enhanced safety and reduced environmental impact compared to traditional methods, thanks to its controlled cutting process and minimal disturbance to surrounding areas. Overall, a rockwheel trencher is ideal for infrastructure projects requiring efficient and precise trenching through tough geological formations.
Specifications
Specification
Detail
Trench Depth
Up to 48 inches
Trench Width
6-12 inches (adjustable)
Engine Power
74 hp
Weight
9,000 pounds
Track Width
12 inches
Max Travel Speed
4 mph
Dimensions
11 x 5 x 7 feet (L x W x H)
Special Features
Rockwheel attachment, tilt track system

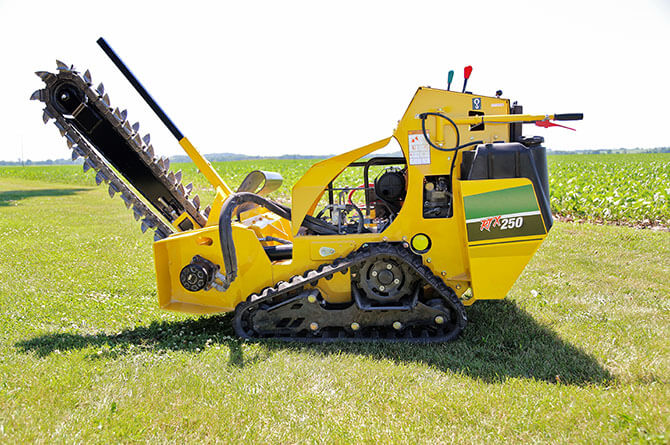

*Equipment shown is an example and may not be the exact equipment provided
